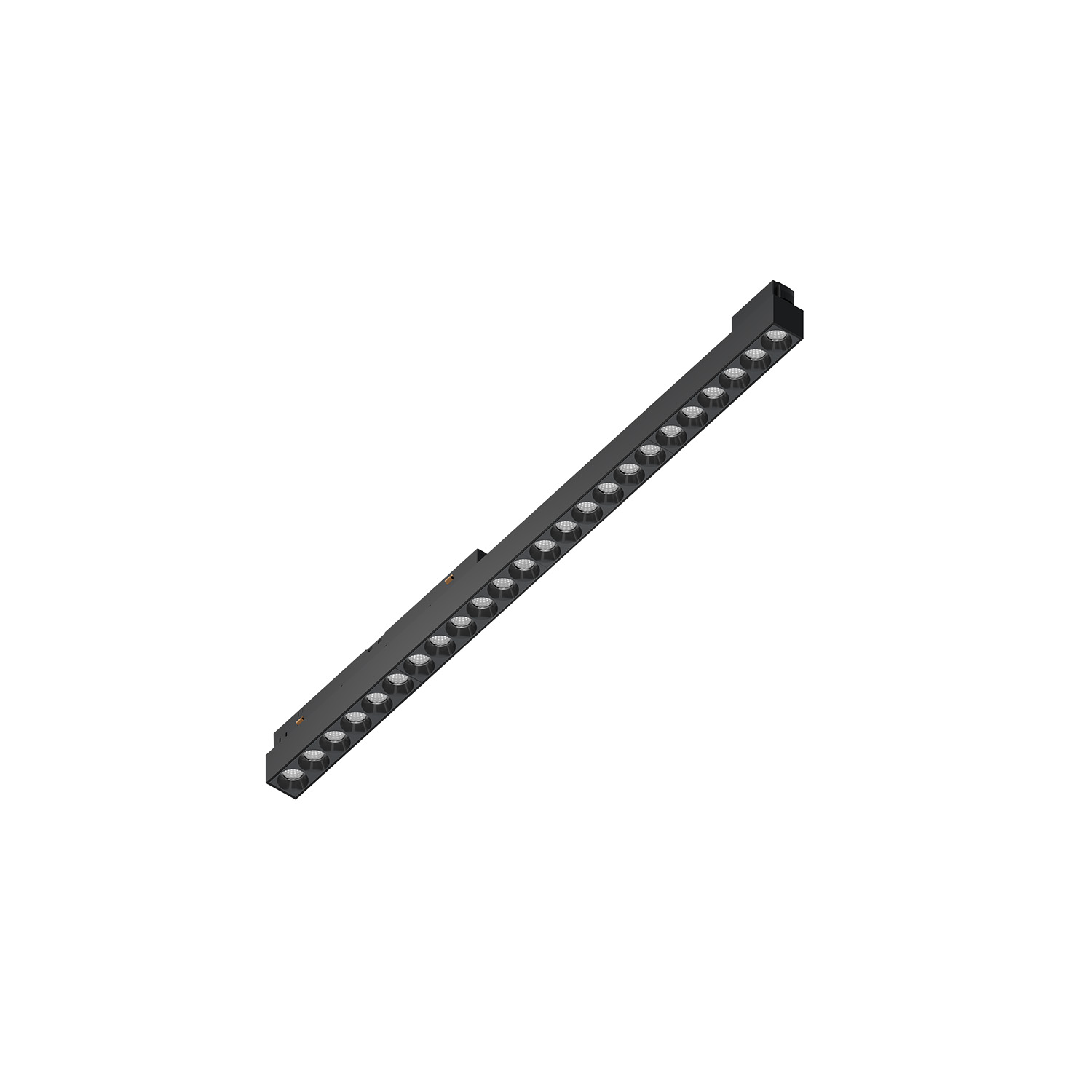

61.02310 SPARK 20 Accent Lighting Fixed
| Connected Load | 13.4W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 31D/53D |
| Track | Low Voltage Track |
| Light Distribution | 61.02310 SPARK 20 Accent Lighting Fixed |
| Luminous Flux Of The Luminaire | 951lm |
| Luminaire Efficacy | 71lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | SMD |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.5Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 31° | ||
| 1 | 2595 | 0.56 |
| 2 | 648 | 1.11 |
| 3 | 288 | 1.67 |
| 4 | 162 | 2.22 |
| 5 | 103 | 2.78 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Photometric Files

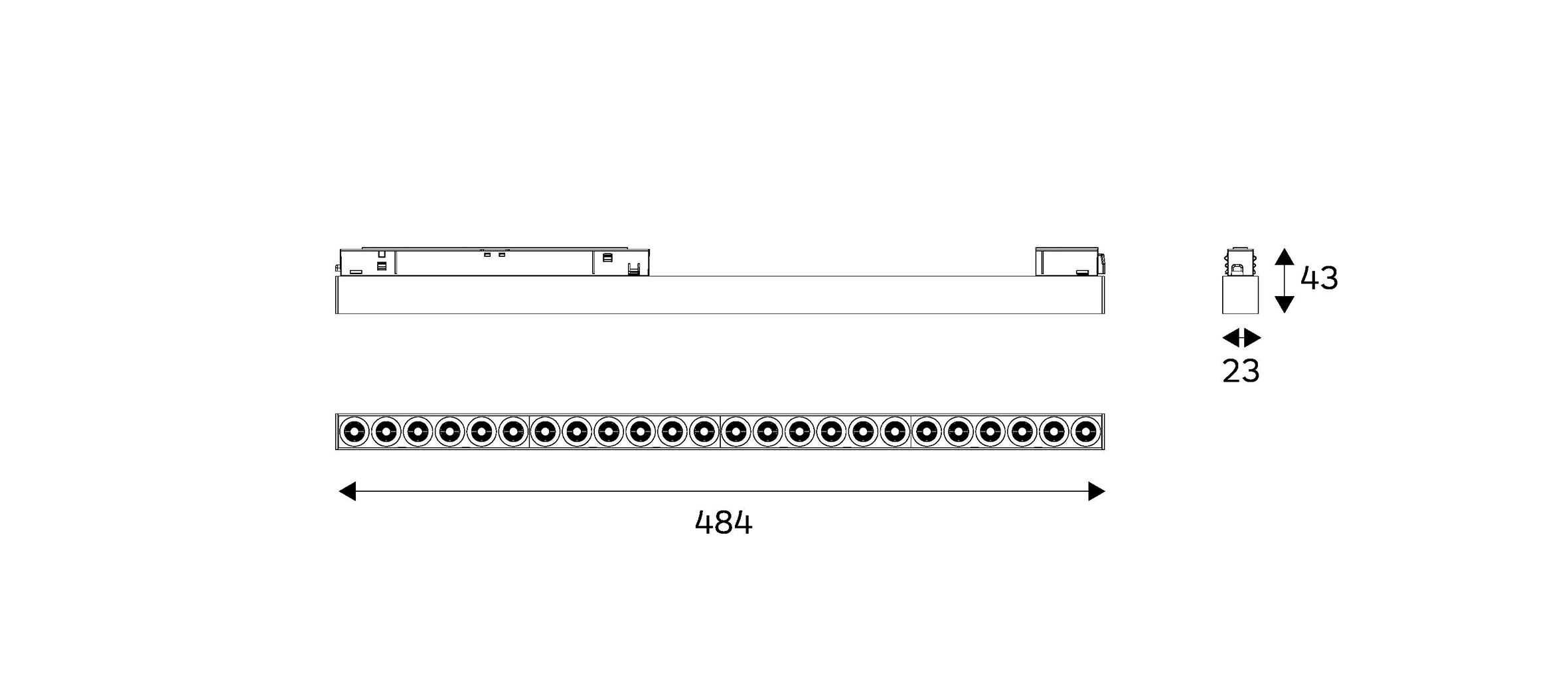

Technical Drawings
