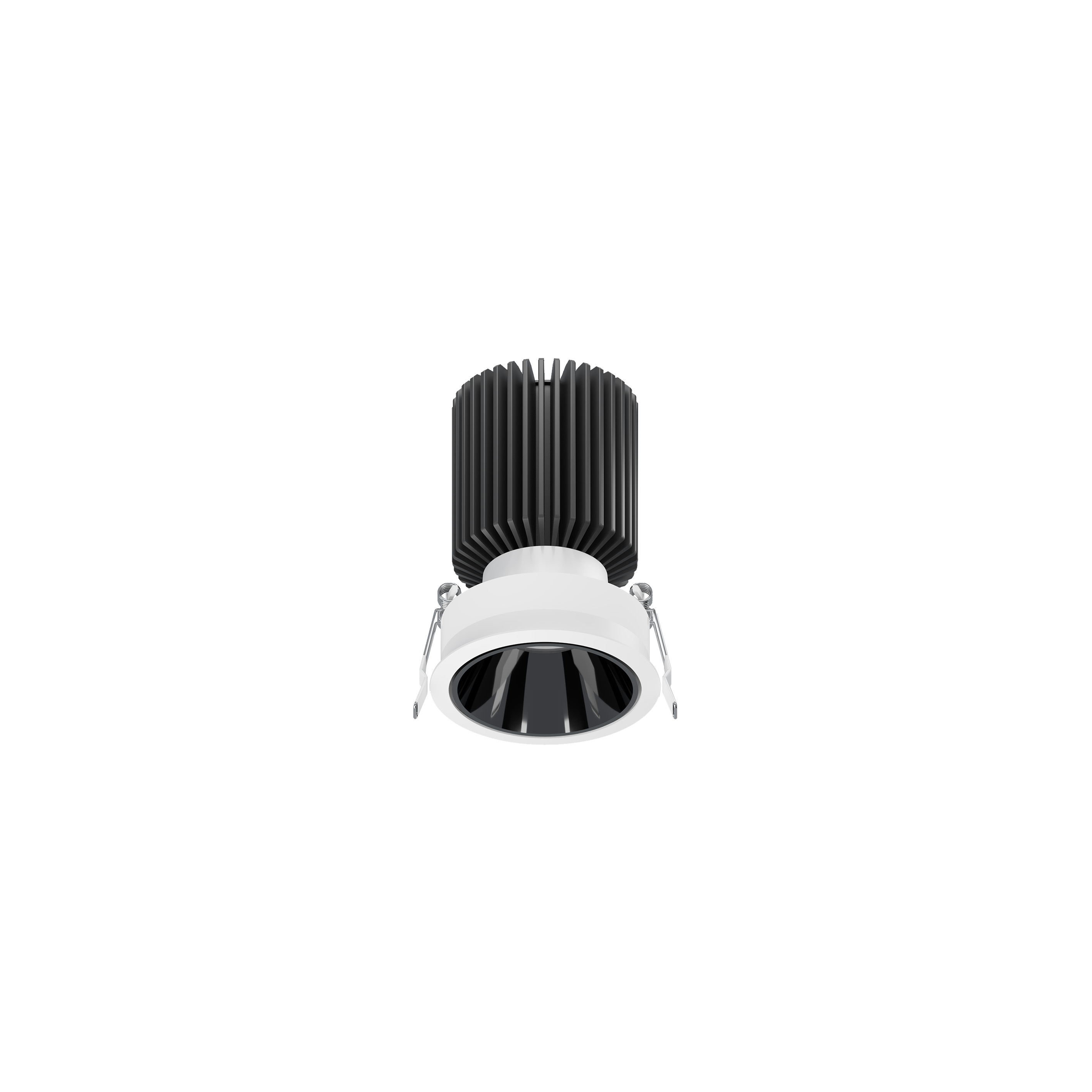

52.08012 SLIM Recessed Downlight Adjustable
| Connected Load | 25W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 21D/31D/40D/50D |
| Cut Out | 80mm |
| Light Distribution | 52.08012 SLIM Recessed Downlight Adjustable |
| Luminous Flux Of The Luminaire | 2795lm |
| Luminaire Efficacy | 115lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |

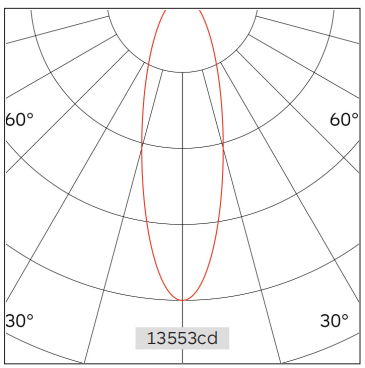

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 21° | ||
| 1 | 13553.2 | 0.38 |
| 2 | 3388 | 0.76 |
| 3 | 1505 | 1.14 |
| 4 | 847 | 1.52 |
| 5 | 542 | 1.90 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Download
Photometric Files

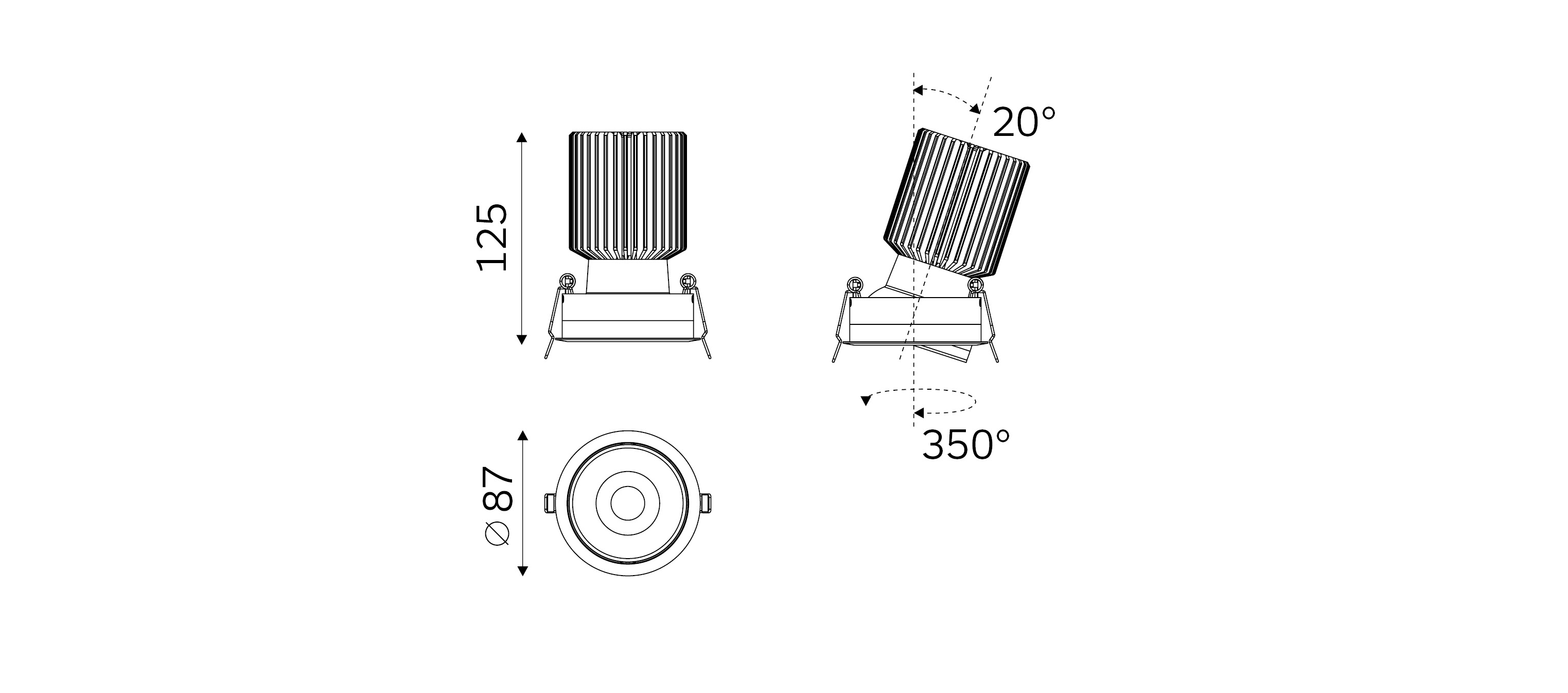

Technical Drawings
