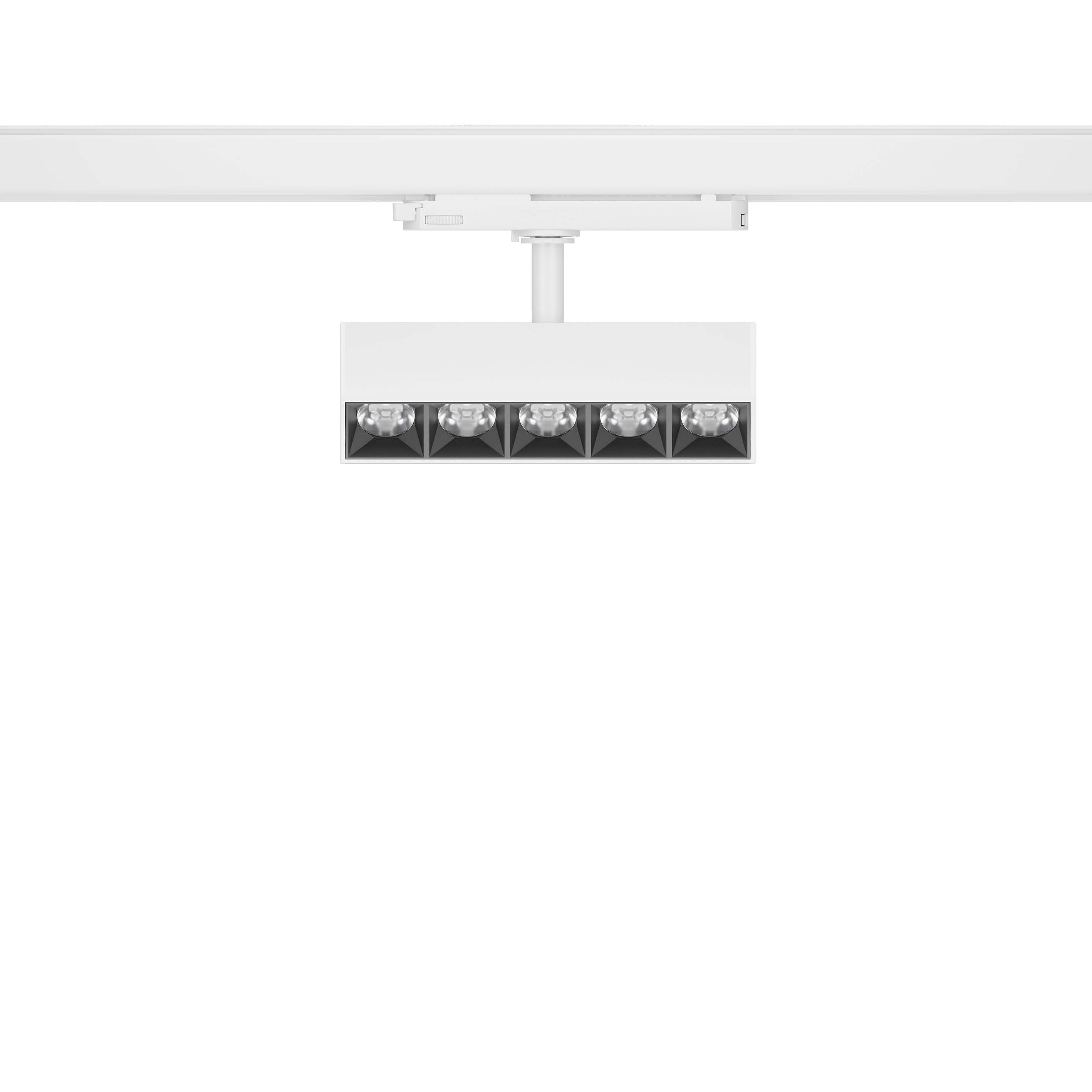

32.04533 MINE Track Lighting
| Connected Load | 20W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 23D/50D |
| Track Phases | 1 Circuit/ 3 Circuit |

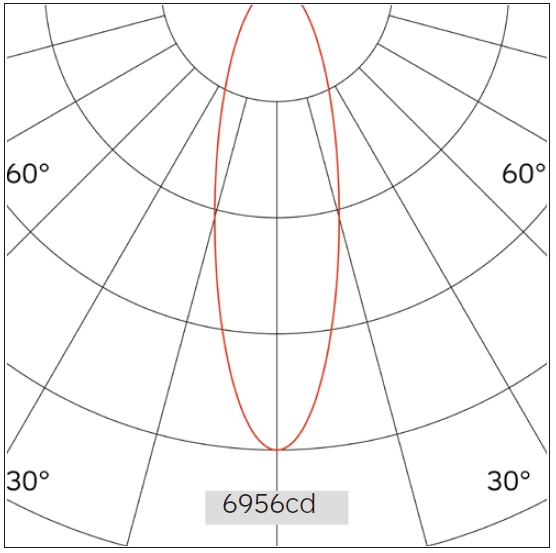

| Light Distribution | 32.04533 MINE Track Lighting |
| Luminous Flux Of The Luminaire | 1824lm |
| Luminaire Efficacy | 91.2lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | SMD |
| Dimming Method | Triac/0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.8Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 23° | ||
| 1 | 6956.27 | 0.41 |
| 2 | 1739.07 | 0.83 |
| 3 | 772.92 | 1.24 |
| 4 | 434.77 | 1.66 |
| 5 | 278.25 | 2.07 |
A modern design consisting for the purpose to meet the highest requirements of the latest advanced lighting technology. Application areas: retail, museums, hospitality, residential, offices and lobbies.
Suitable accessories
Download
Photometric Files

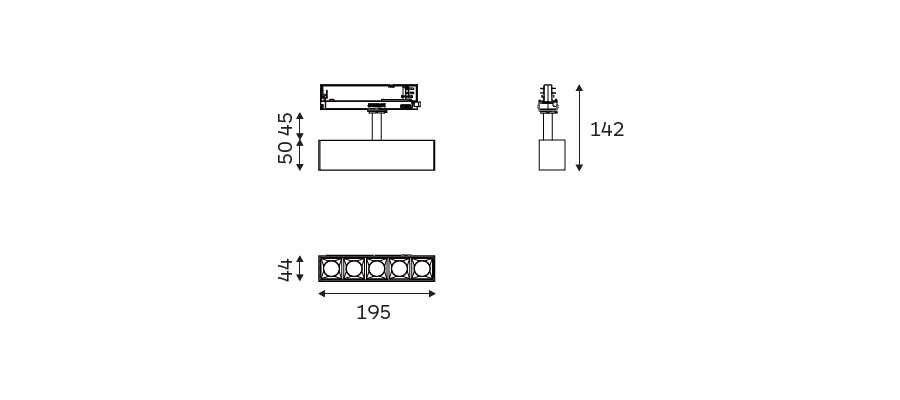

Technical Drawings
