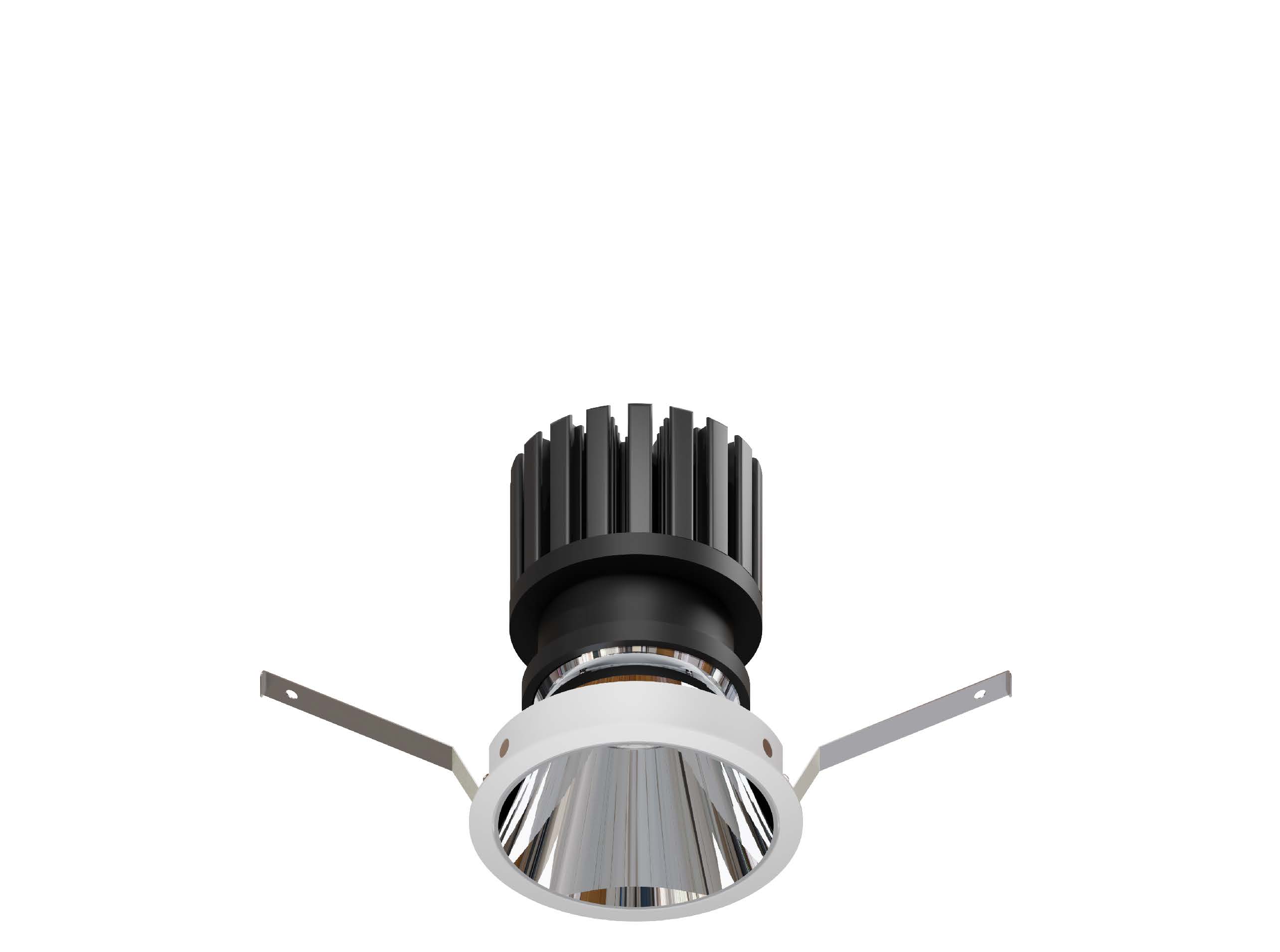

51.07525 FLEXI Recessed Downlight
| Connected Load | 15W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 19D/29D/40D/50D |
| Cut Out | 75mm |
| Light Distribution | 51.07525 FLEXI Recessed Downlight |
| Luminous Flux Of The Luminaire | 1547lm |
| Luminaire Efficacy | 105lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.7Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 19° | ||
| 1 | 8658.93 | 0.34 |
| 2 | 2164.73 | 0.67 |
| 3 | 962.10 | 1.01 |
| 4 | 541.18 | 1.35 |
| 5 | 346.36 | 1.68 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories

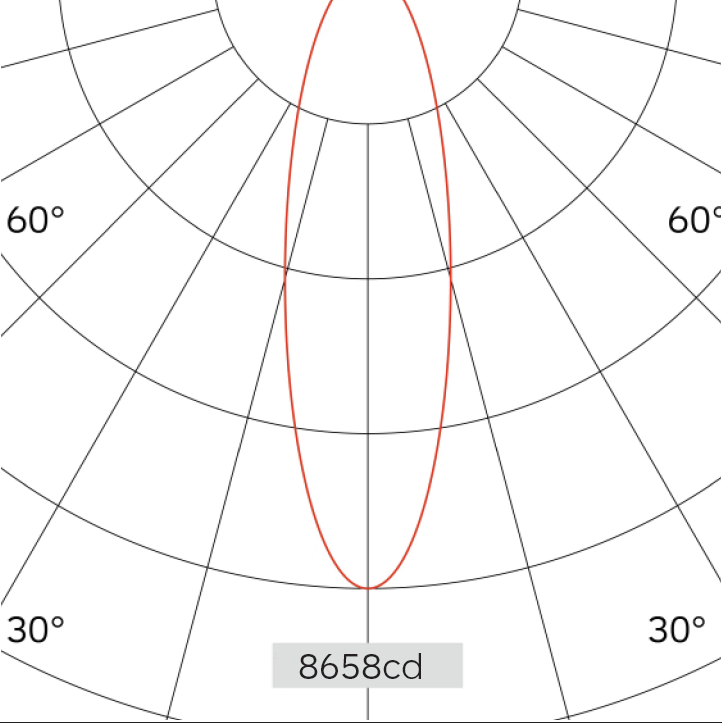

Photometric Files

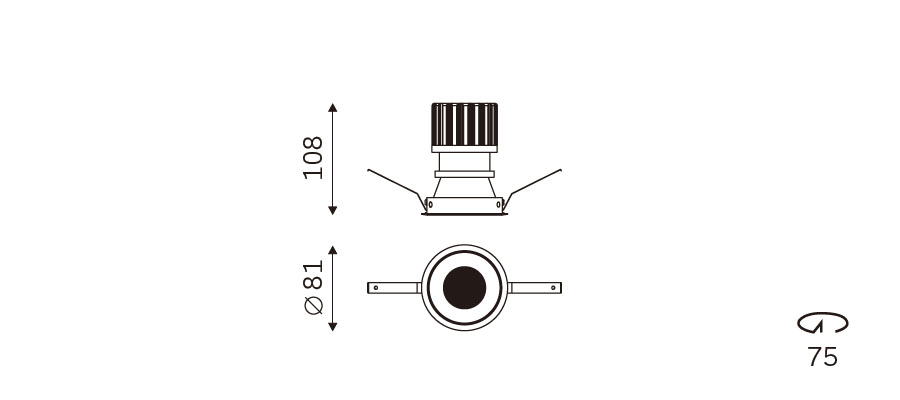

Technical Drawings
