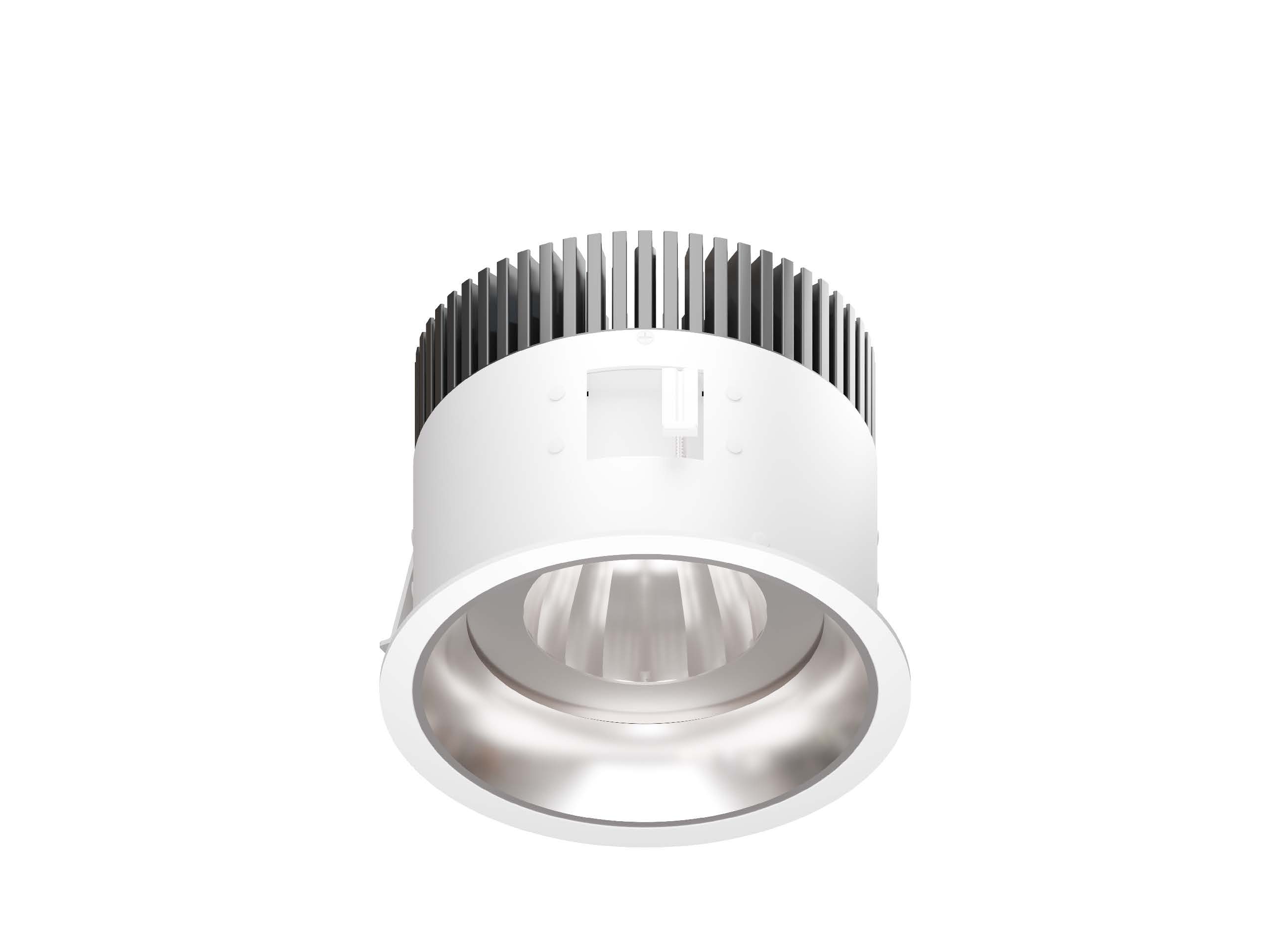

51.13511 HICORE Recessed Downlight
| Connected Load | 60W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 21D/38D/56D/66D |

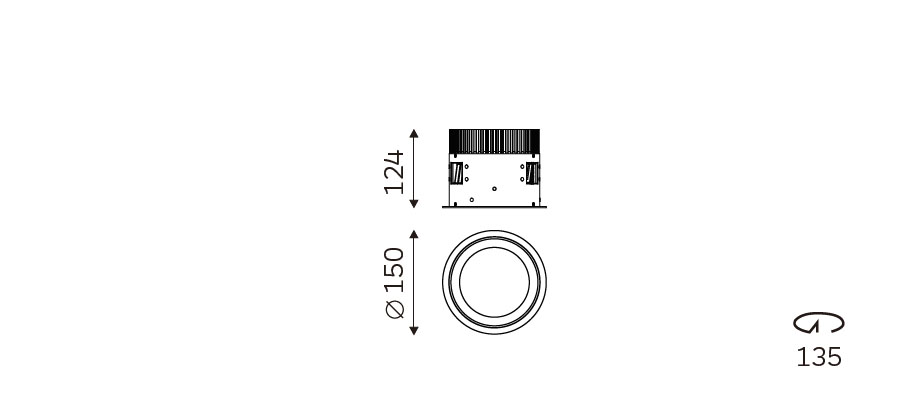

| Cut Out | 135mm |

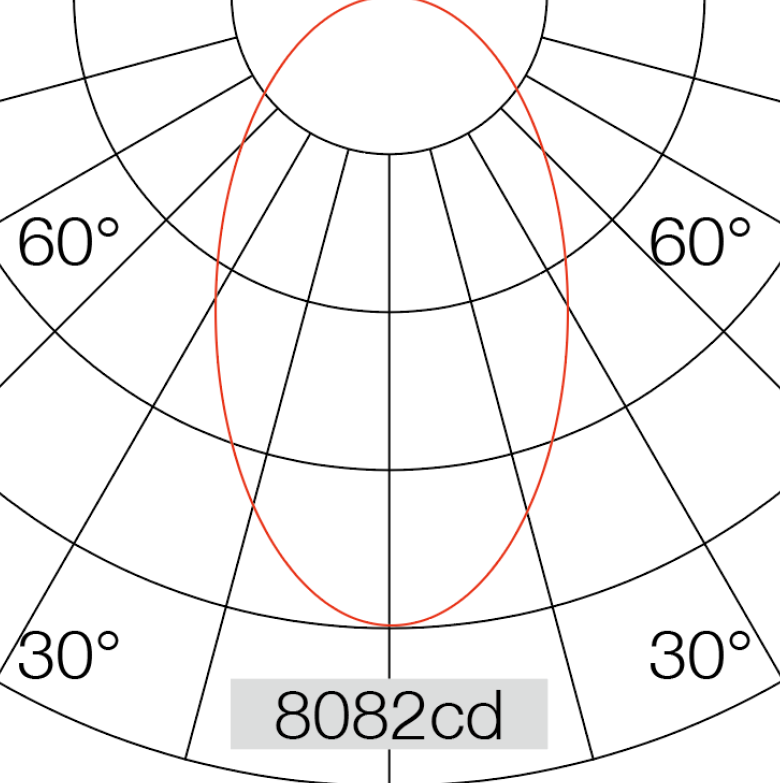

| Light Distribution | 51.13511 HICORE Recessed Downlight |
| Luminous Flux Of The Luminaire | 7546lm |
| Luminaire Efficacy | 126lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 2Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 56° | ||
| 1 | 9017.03 | 1.07 |
| 2 | 2254.26 | 2.14 |
| 3 | 1001.89 | 3.21 |
| 4 | 563.56 | 4.27 |
| 5 | 360.68 | 5.34 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
