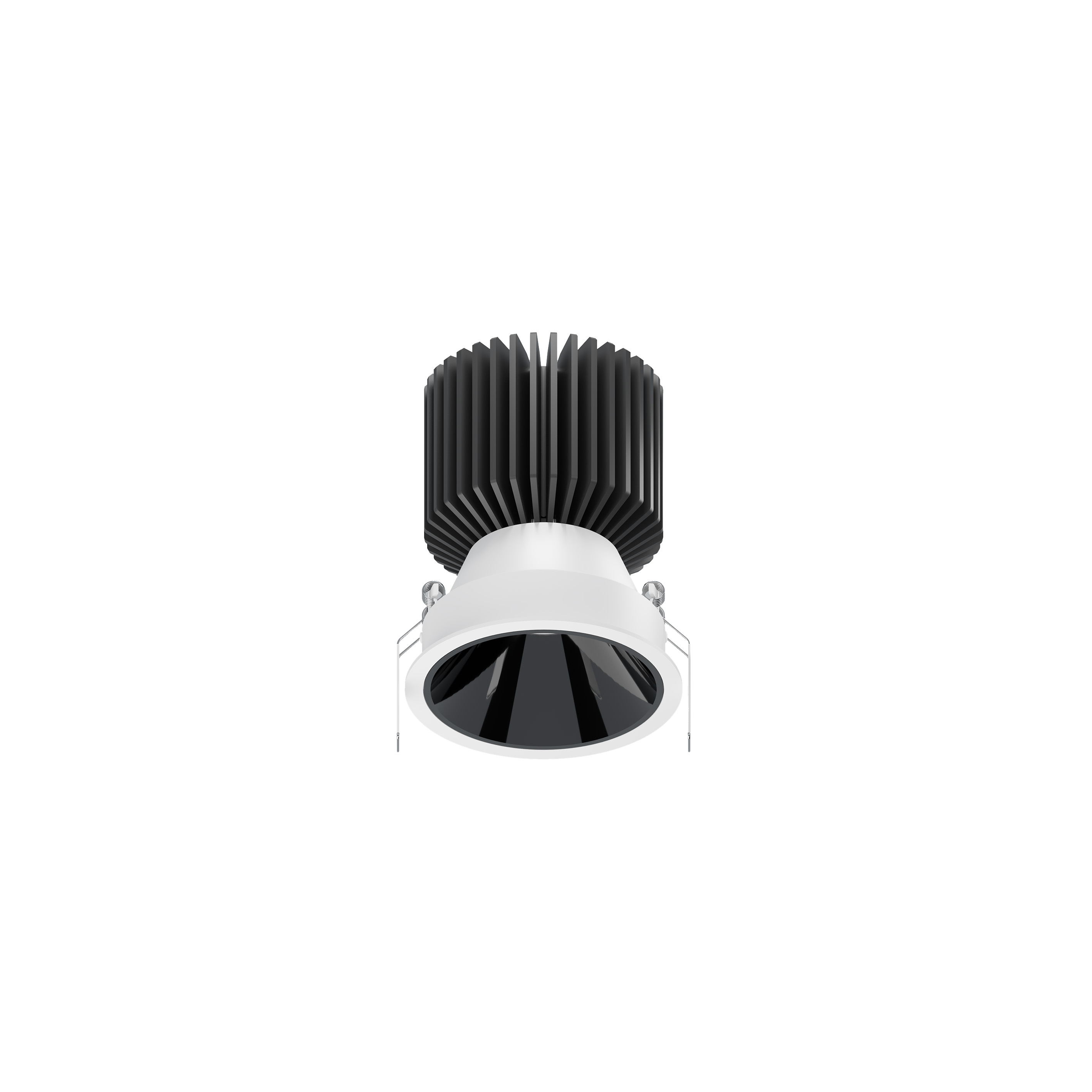

51.09511 SLIM Recessed Downlight Fixed
| Connected Load | 40W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 27D/32/41D/51D |
| Cut Out | 95mm |

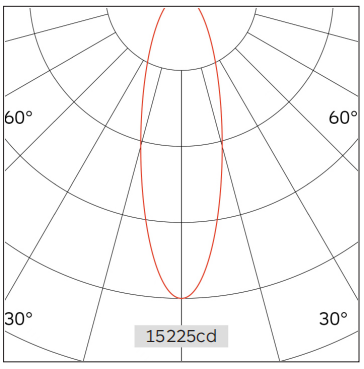

| Light Distribution | 51.09511 SLIM Recessed Downlight Fixed |
| Luminous Flux Of The Luminaire | 4374lm |
| Luminaire Efficacy | 109lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.8Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 26° | ||
| 1 | 15225 | 0.47 |
| 2 | 3806 | 0.93 |
| 3 | 2436 | 1.40 |
| 4 | 951 | 1.87 |
| 5 | 609 | 2.34 |
Application areas: High end residential and retail projects, hotels, museums and galleries.
Suitable accessories
-
AWhite
-
BChrome
-
CGun Black
-
DMatt Black
Download
Photometric Files

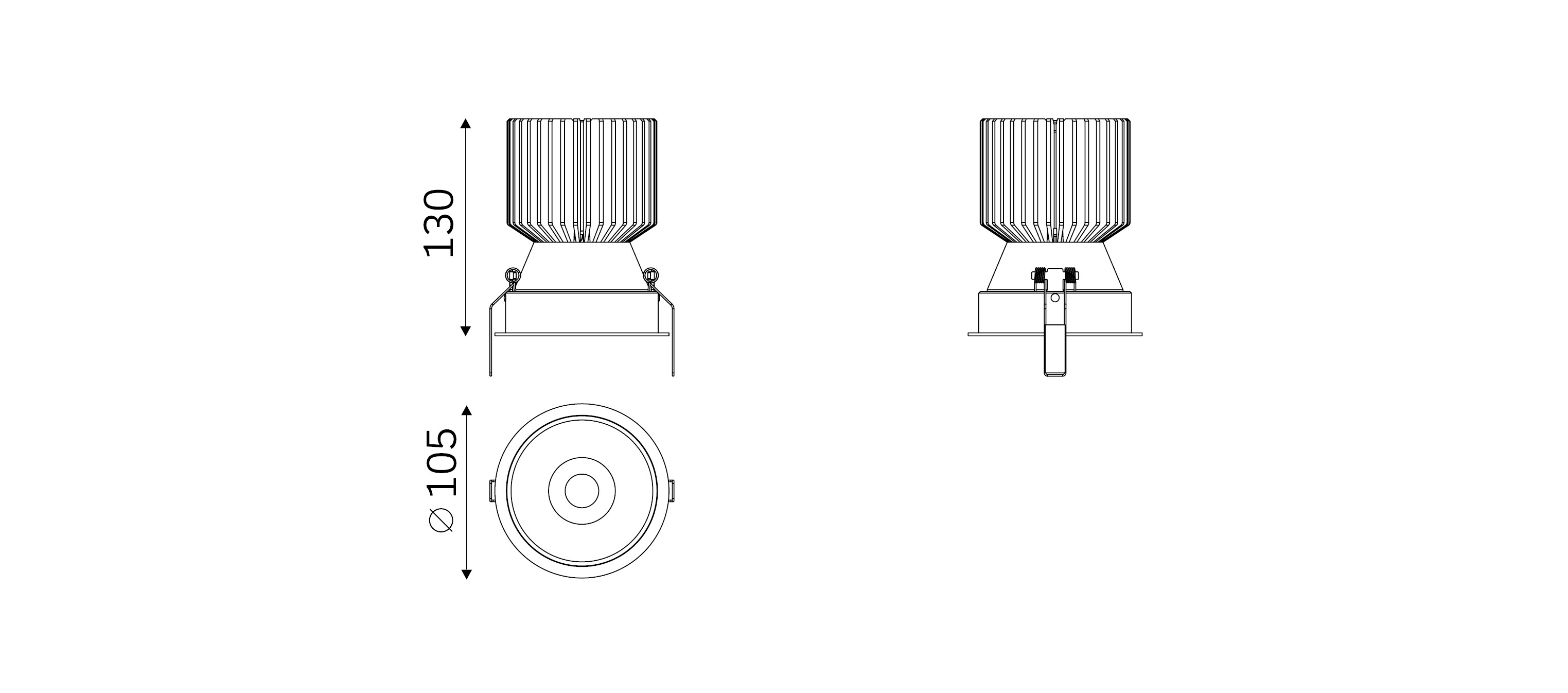

Technical Drawings
