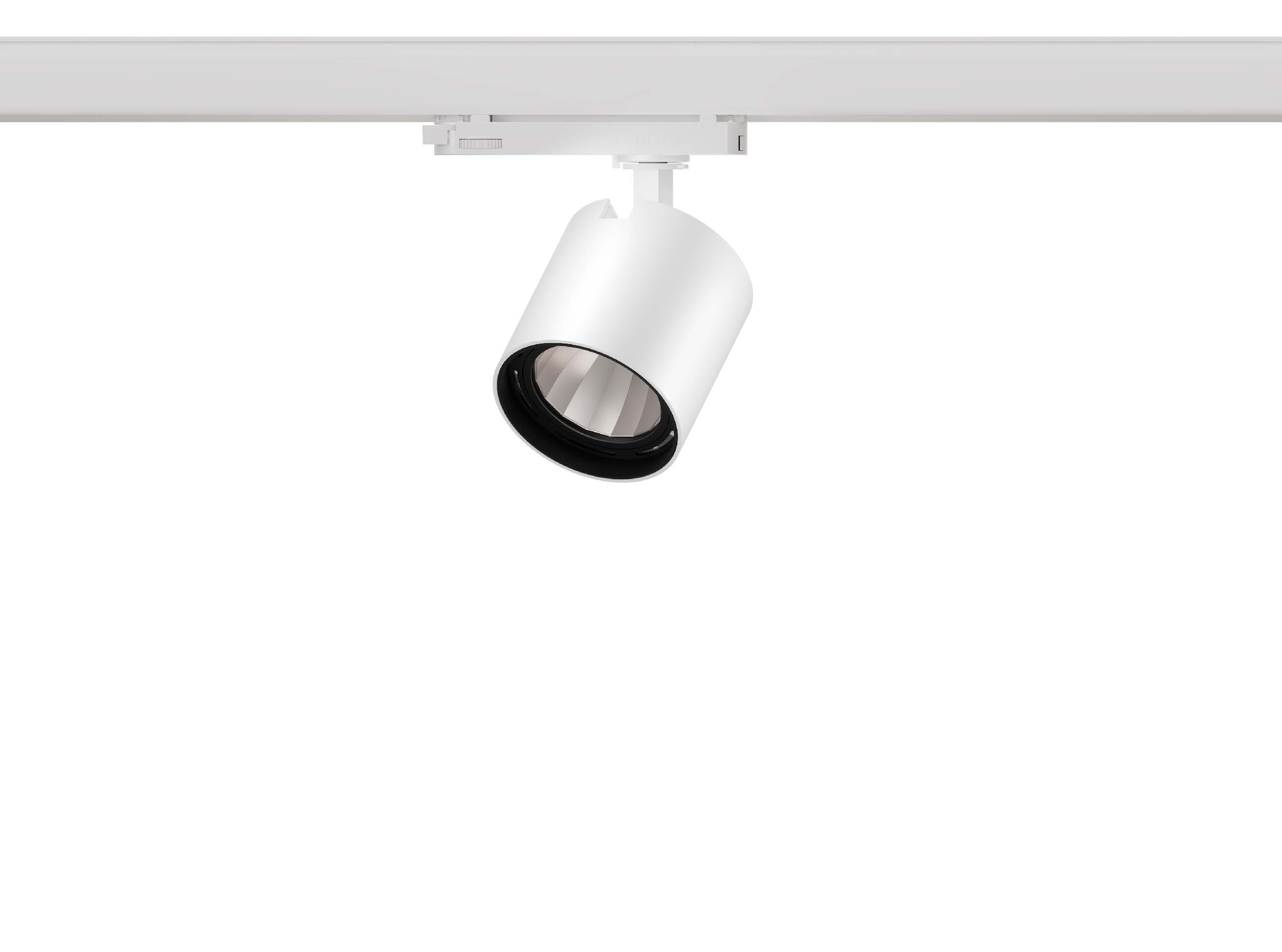

32.08423 High Lumen Pro Track Lighting
| Connected Load | 23W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 21D/40D/60D |
| Track Phases | 1 Circuit/ 3 Circuit |
| Light Distribution | 32.08423 High Lumen Pro Track Lighting |
| Luminous Flux Of The Luminaire | 2980lm |
| Luminaire Efficacy | 129lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.6Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 21° | ||
| 1.0 | 13663.87 | 0.38 |
| 2.0 | 3415.97 | 0.75 |
| 3.0 | 1518.21 | 1.13 |
| 4.0 | 853.99 | 1.51 |
| 5.0 | 546.55 | 1.88 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
-
A+ Anti Glare
-
BUGR<19
-
CWall washer

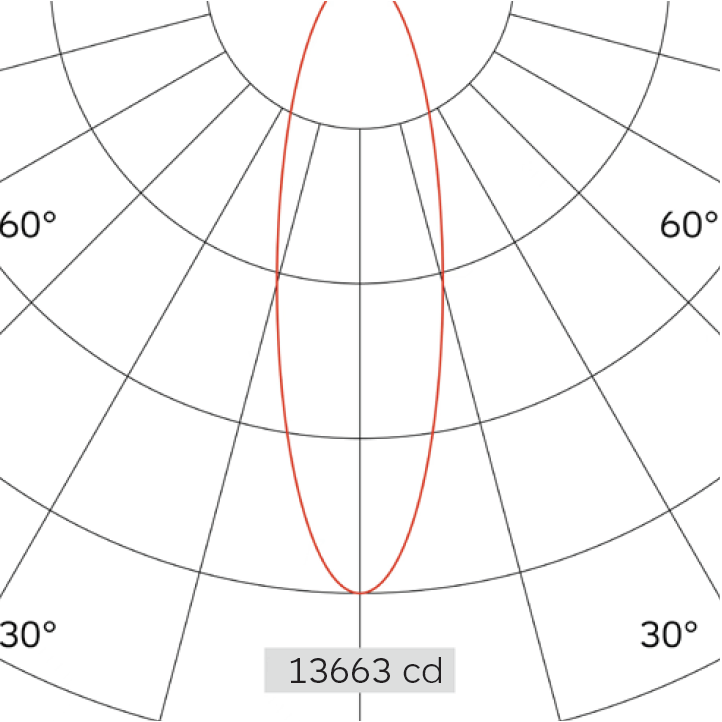

Photometric Files

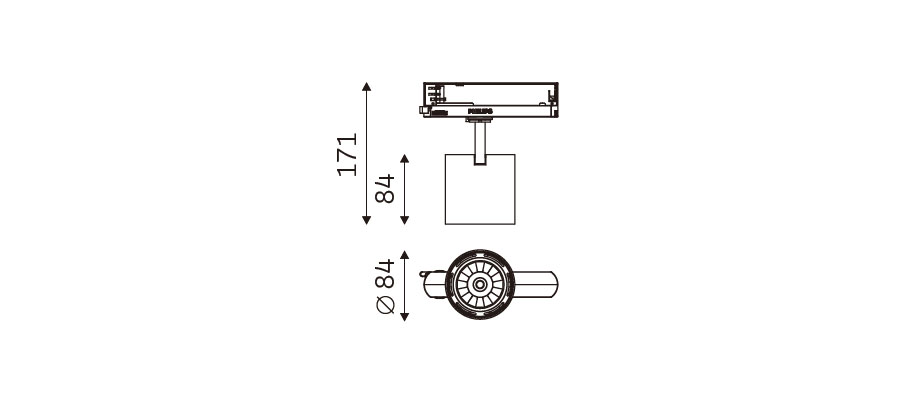

Technical Drawings
