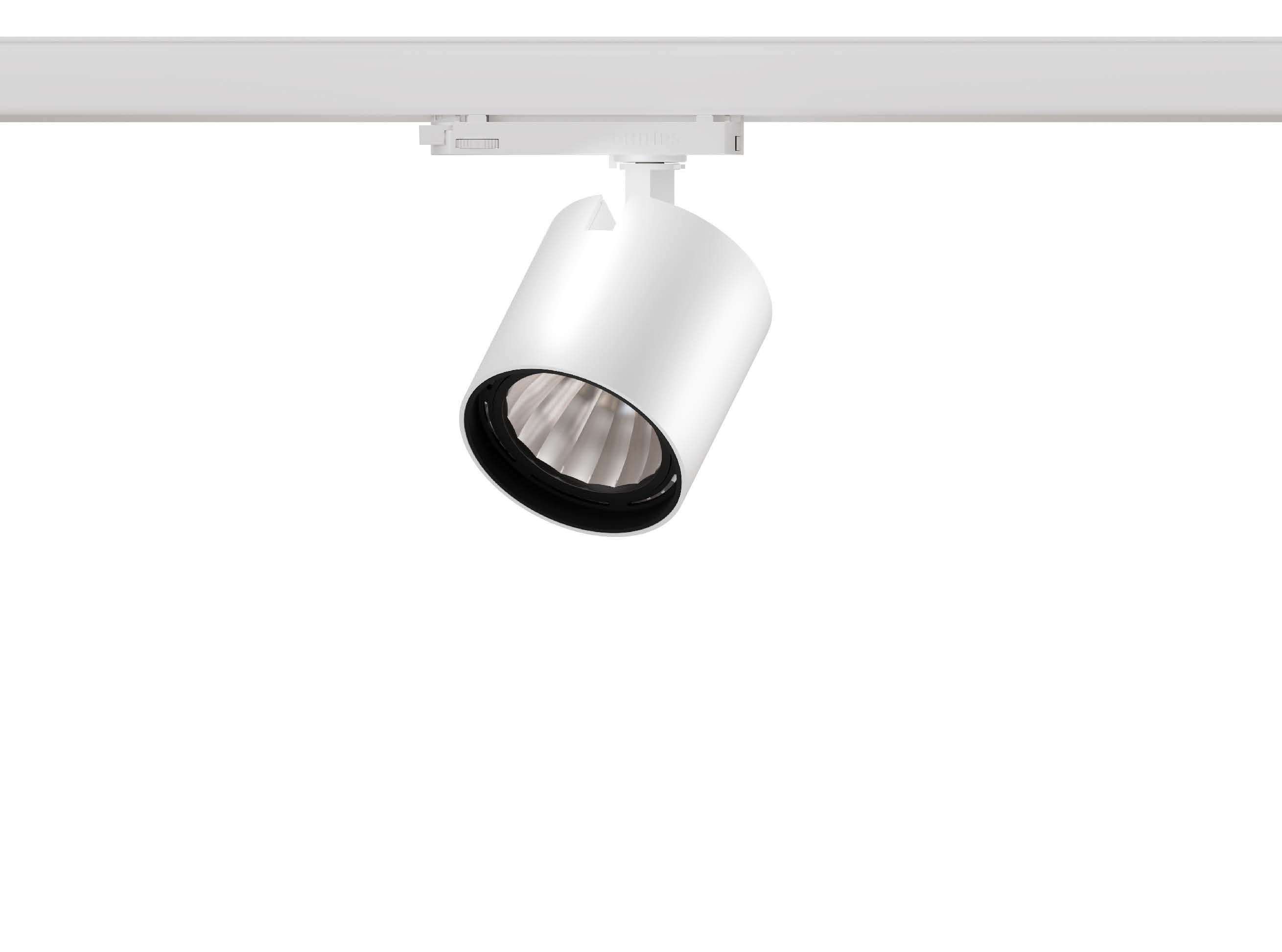

32.10111 High Lumen Pro Track Lighting
| Connected Load | 39W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | Reflector |
| Beam Angle | 22D/33D/55D/68D |
| Track Phases | 1 Circuit/ 3 Circuit |
| Light Distribution | 32.10111 High Lumen Pro Track Lighting |
| Luminous Flux Of The Luminaire | 5224lm |
| Luminaire Efficacy | 133lm/W |
| Colour Deviation | SDCM&＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.8Kg |
| Technical Region | 220-240V 50/60Hz |

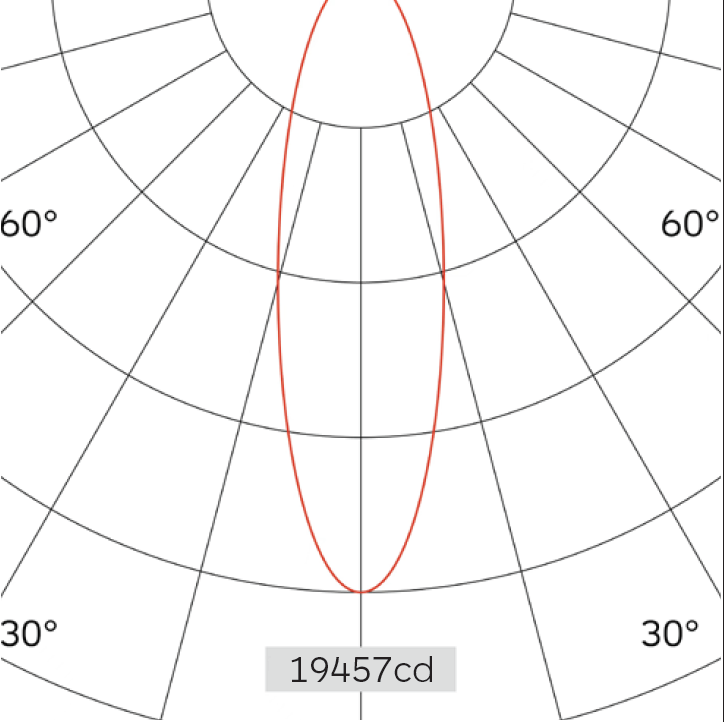

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 22° | ||
| 1.0 | 19457.90 | 0.39 |
| 2.0 | 4886.98 | 0.78 |
| 3.0 | 2171.99 | 1.18 |
| 4.0 | 1221.74 | 1.57 |
| 5.0 | 781.92 | 1.96 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
-

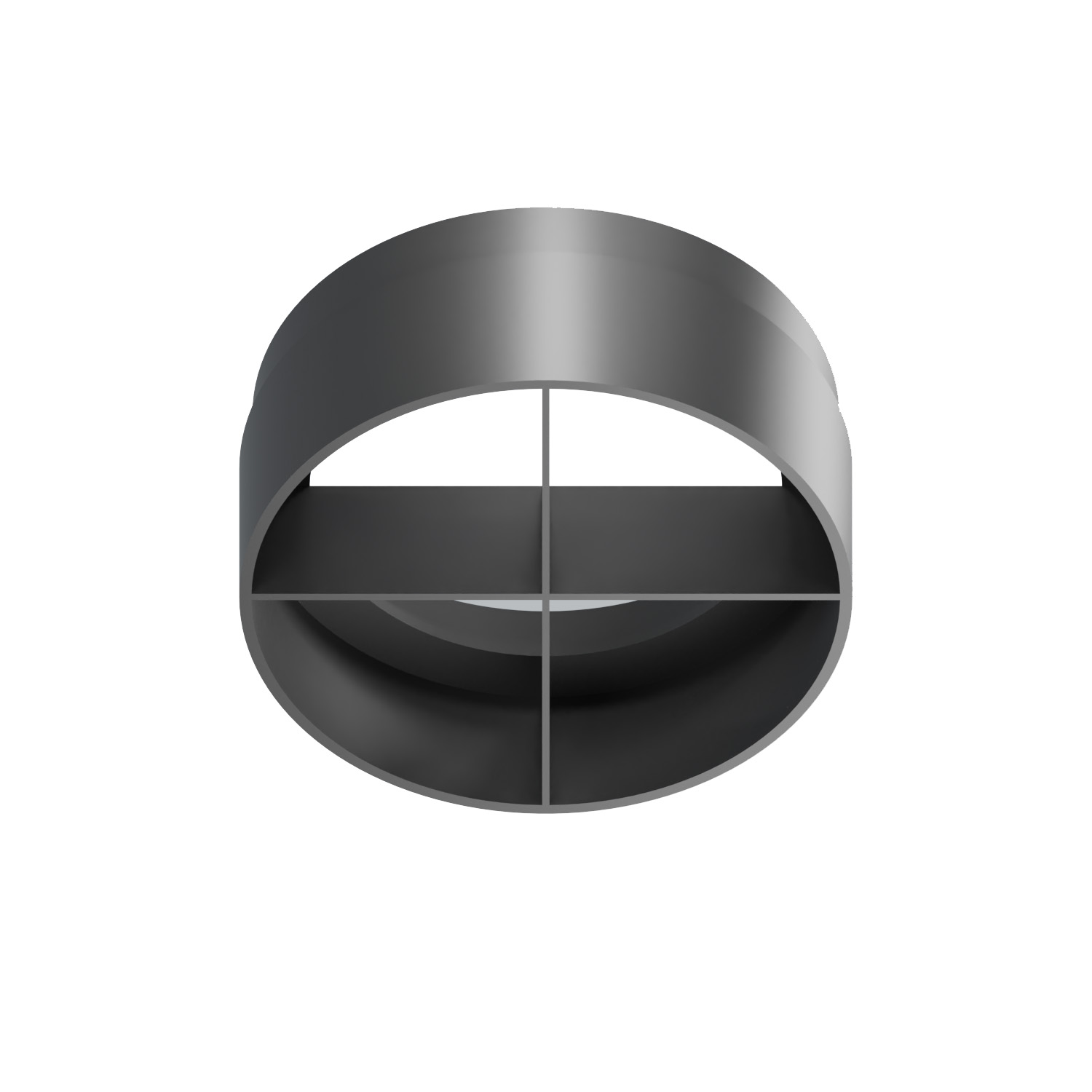

A+ Anti Glare
-

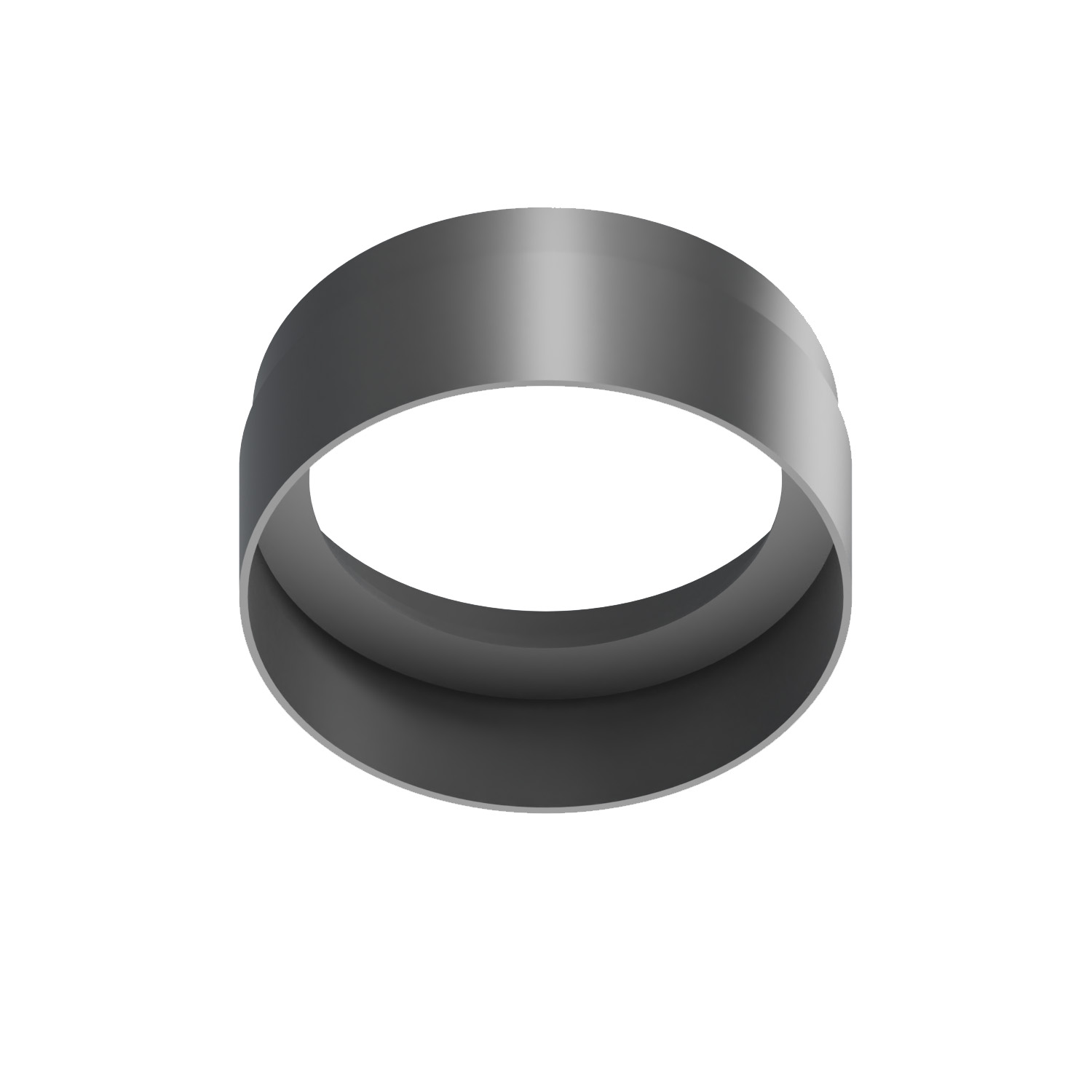

BUGR<19
-

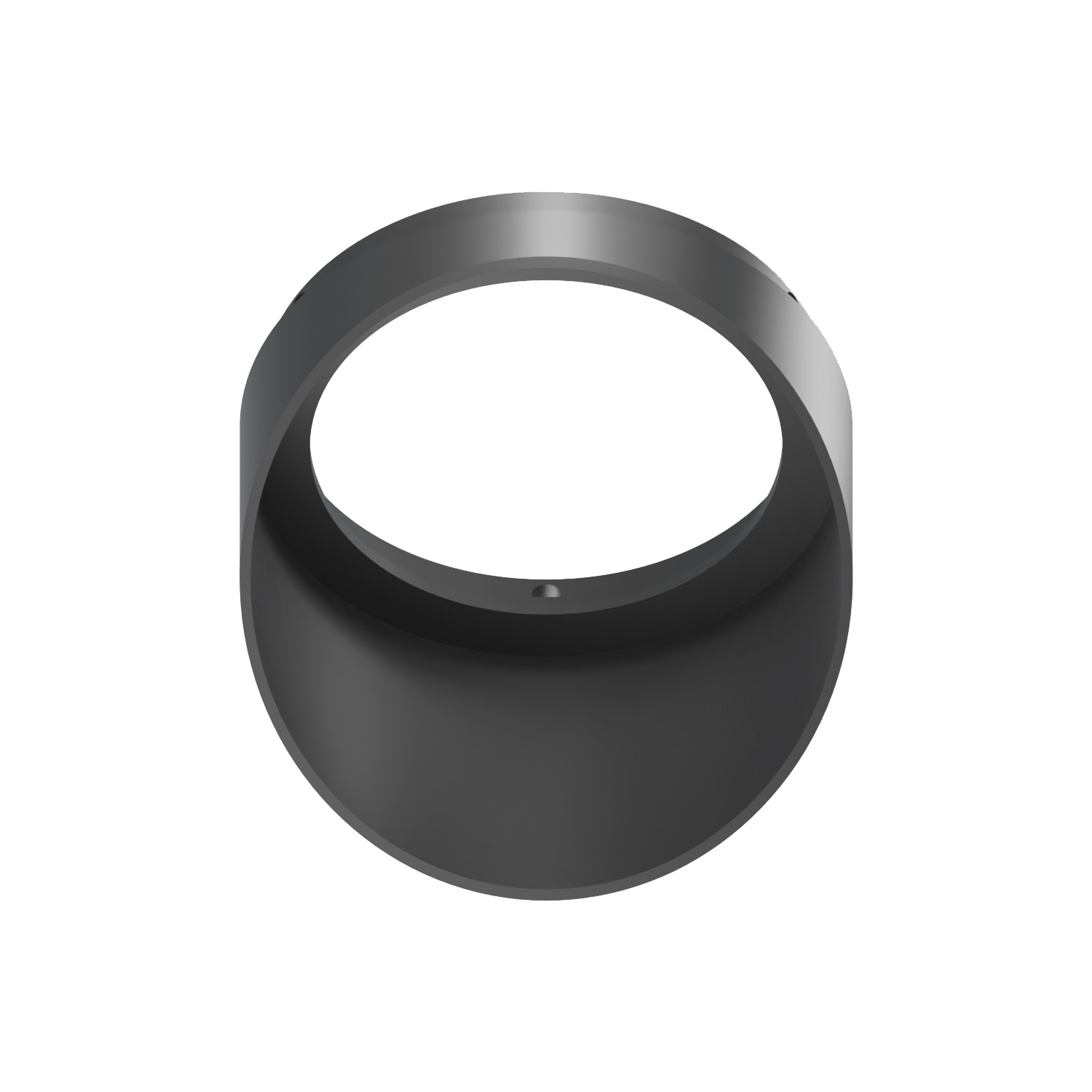

CWall washer
Photometric Files

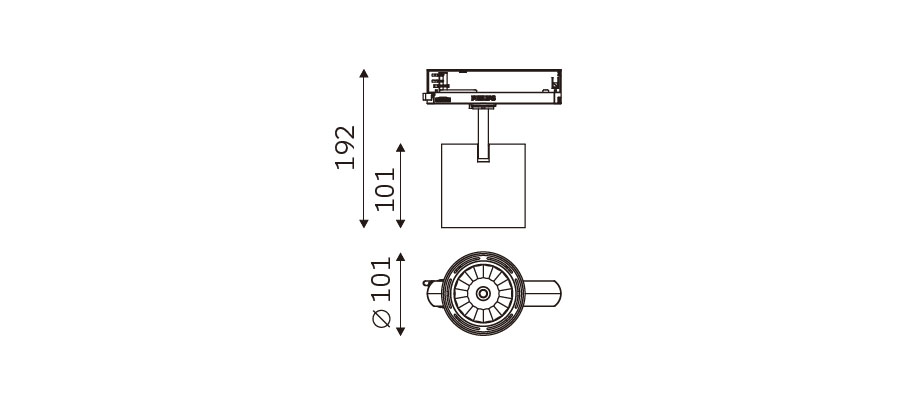

Technical Drawings
