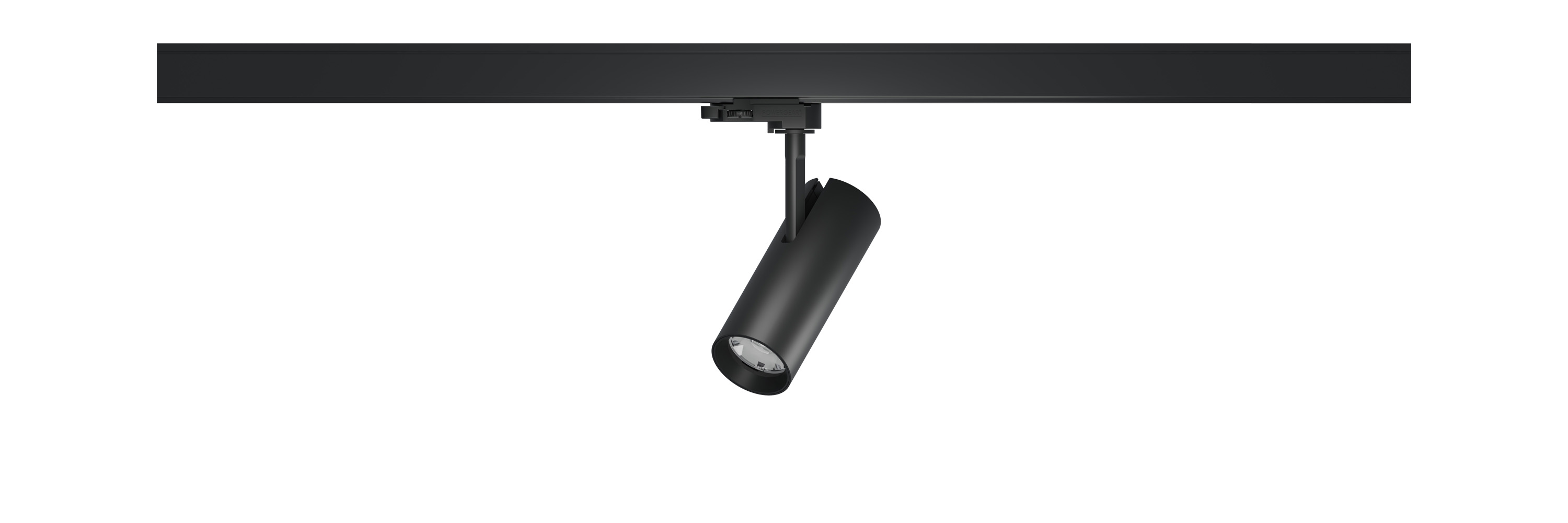

32.05522 SPECTRUM Track Lighting
| Connected Load | 14.3W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/28D/39D/49D |
| Track Phases | 1 Circuit/ 3 Circuit |
| Light Distribution | 32.05522 SPECTRUM Track Lighting |
| Luminous Flux Of The Luminaire | 1244lm |
| Luminaire Efficacy | 87lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Trica/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.55Kg |
| Technical Region | 220-240V 50/60Hz |

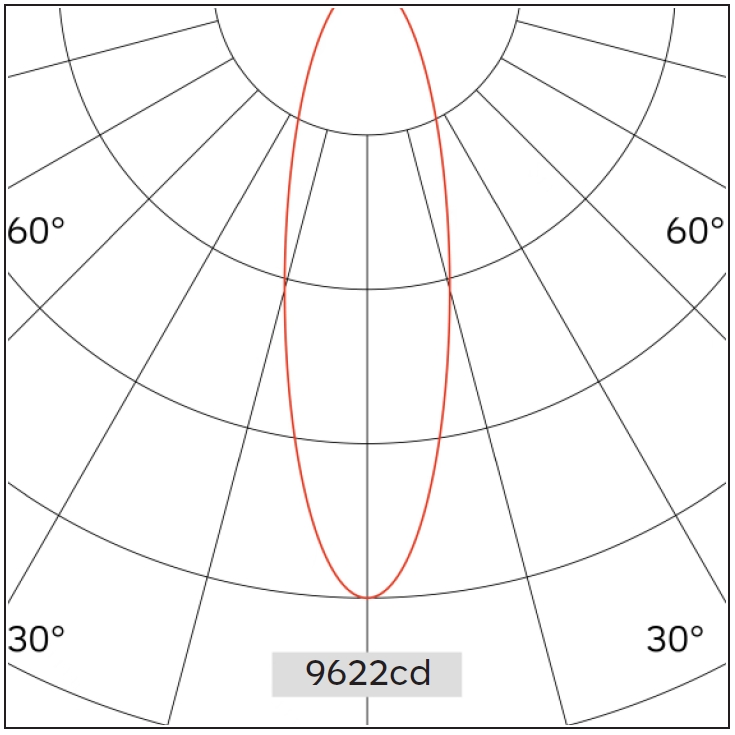

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 17° | ||
| 1 | 9622 | 0.30 |
| 2 | 2405 | 0.60 |
| 3 | 1069 | 0.90 |
| 4 | 601 | 1.20 |
| 5 | 385 | 1.50 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
-

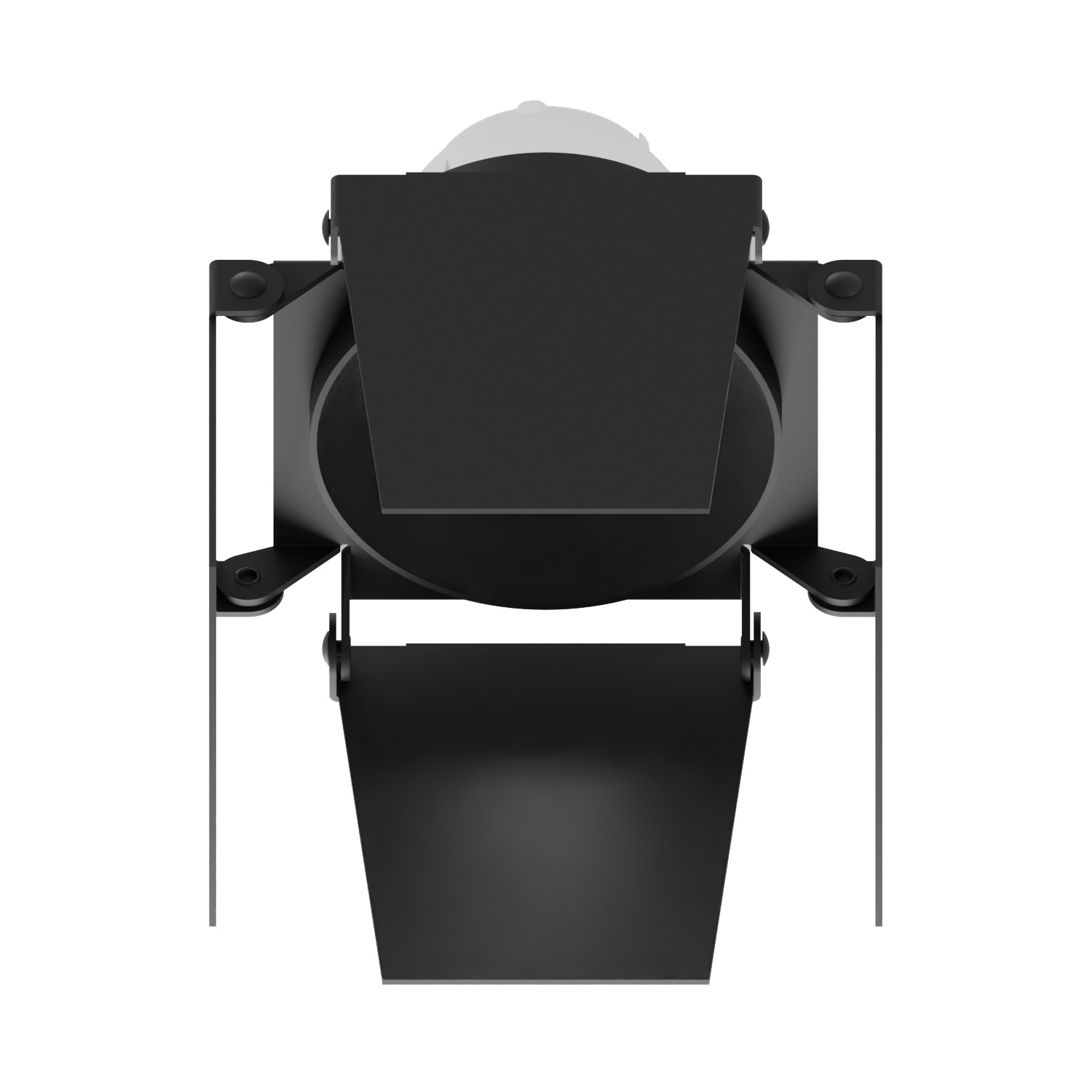

ABrandoor
-

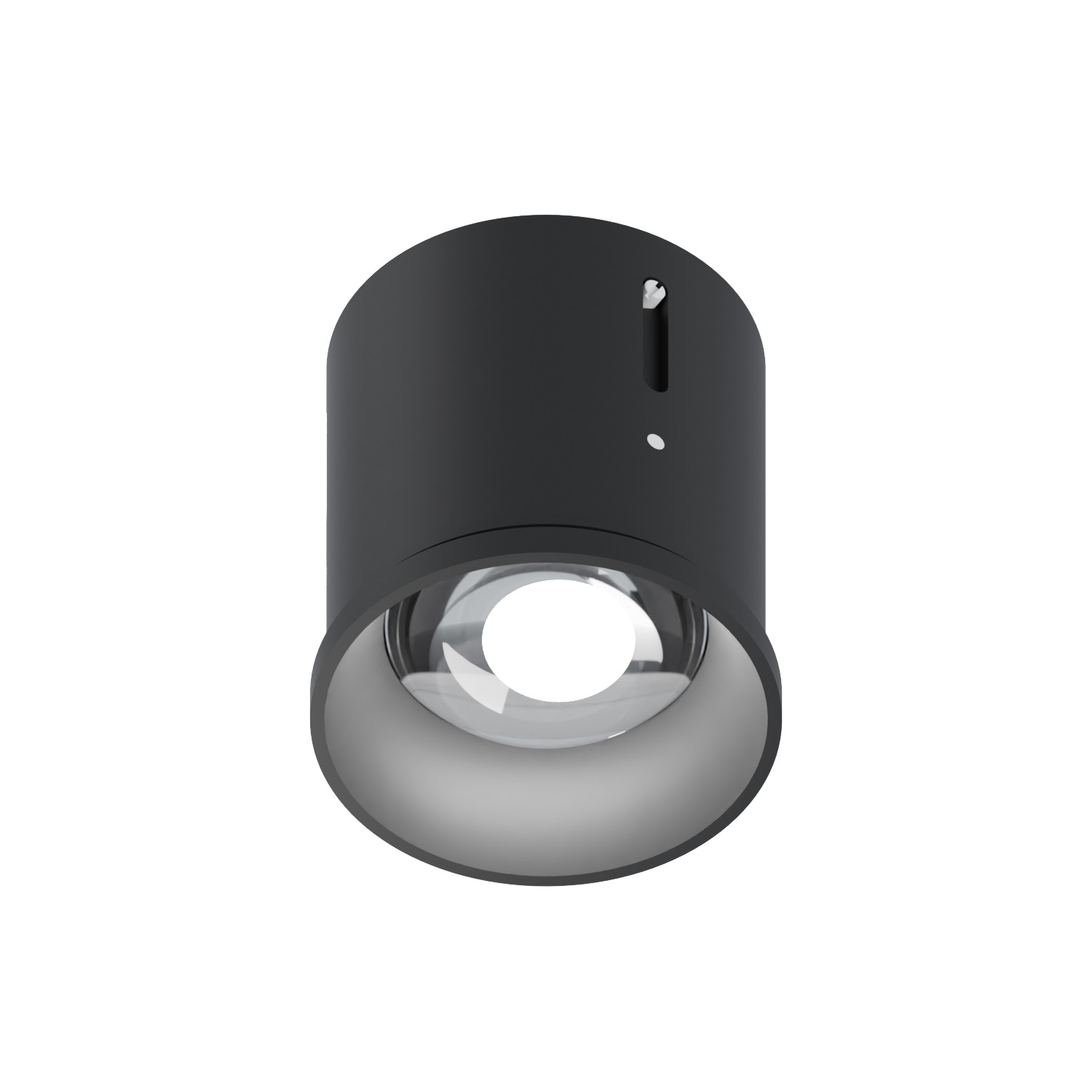

BZoom
-

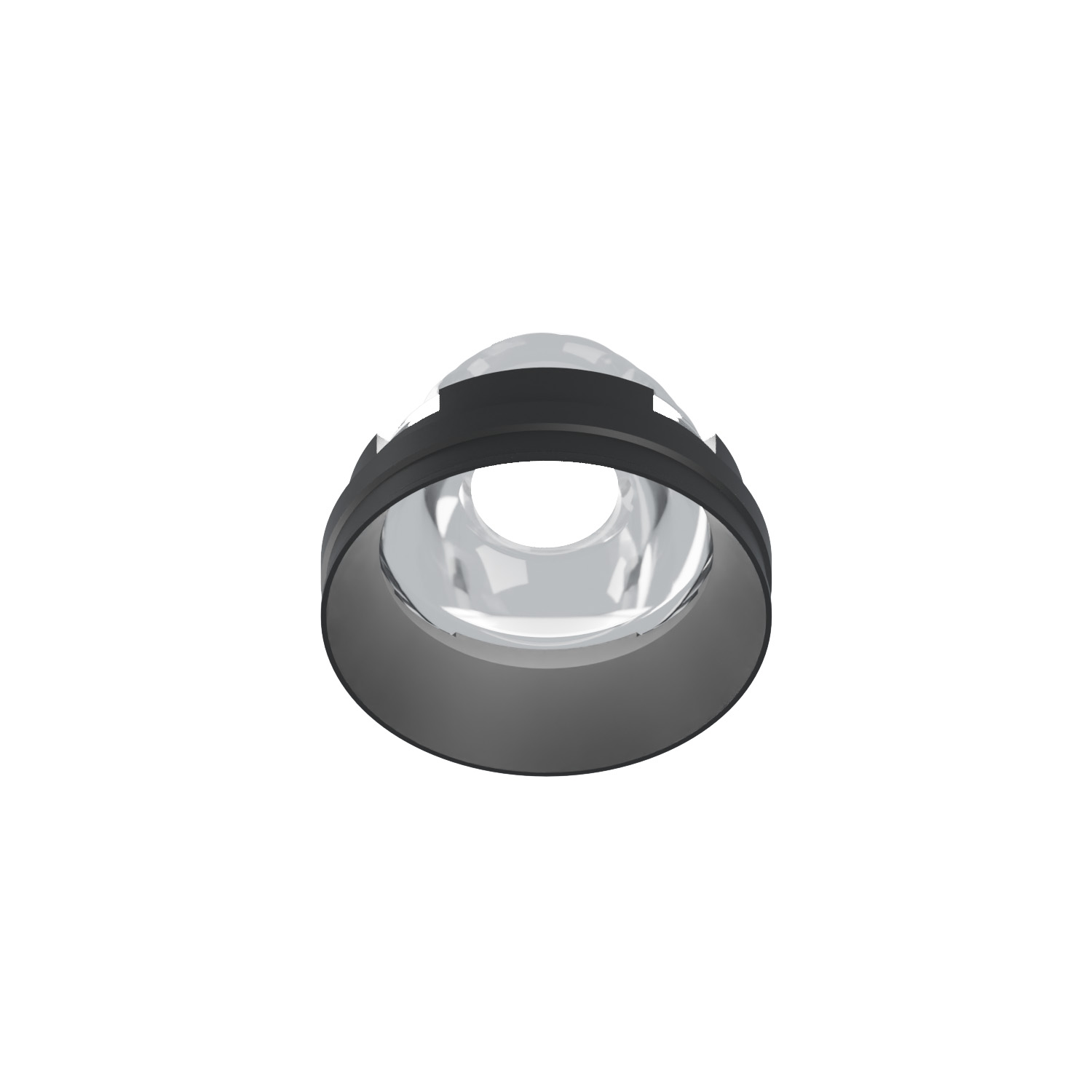

CStandard Beam Angle
-

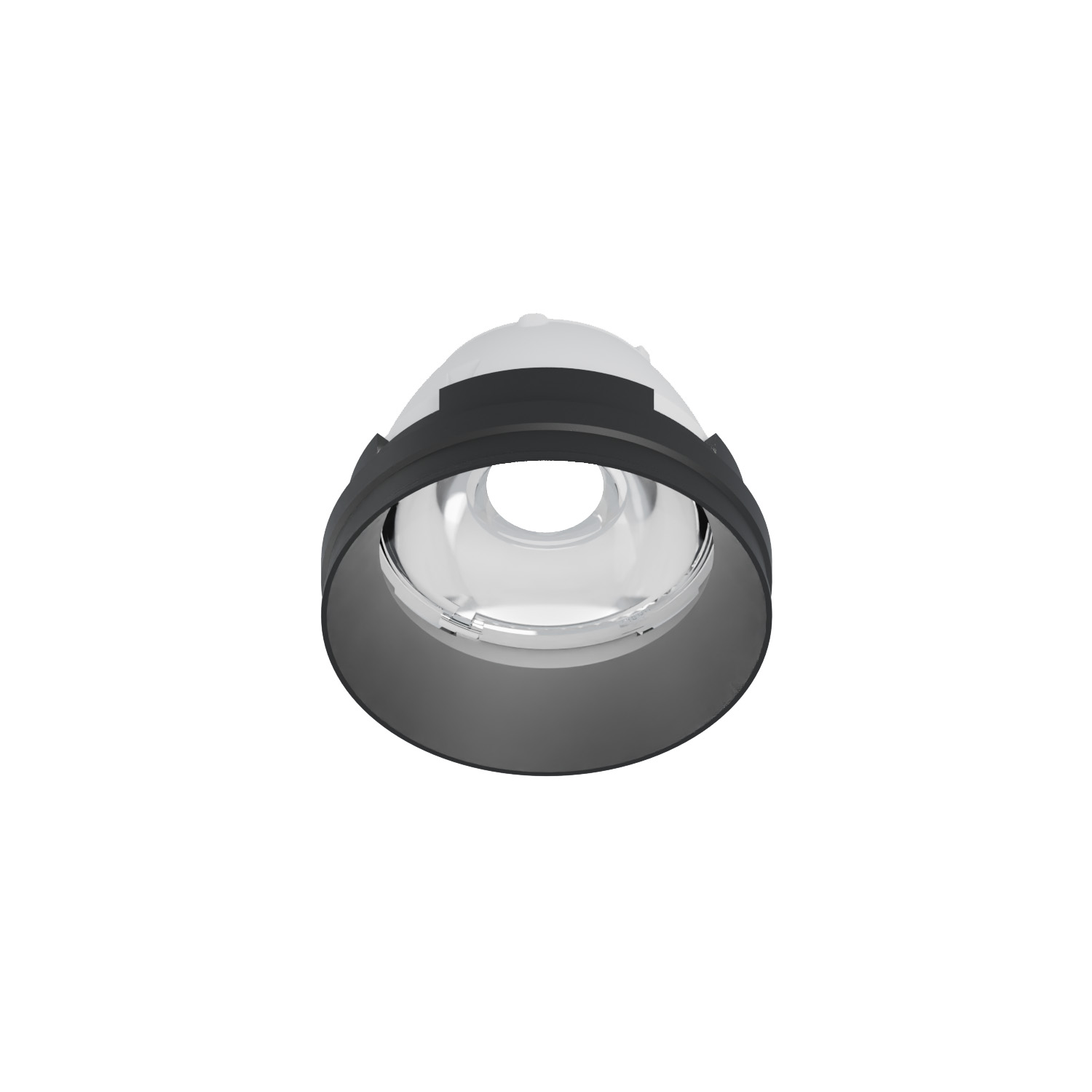

DNarrow Beam Angle
-

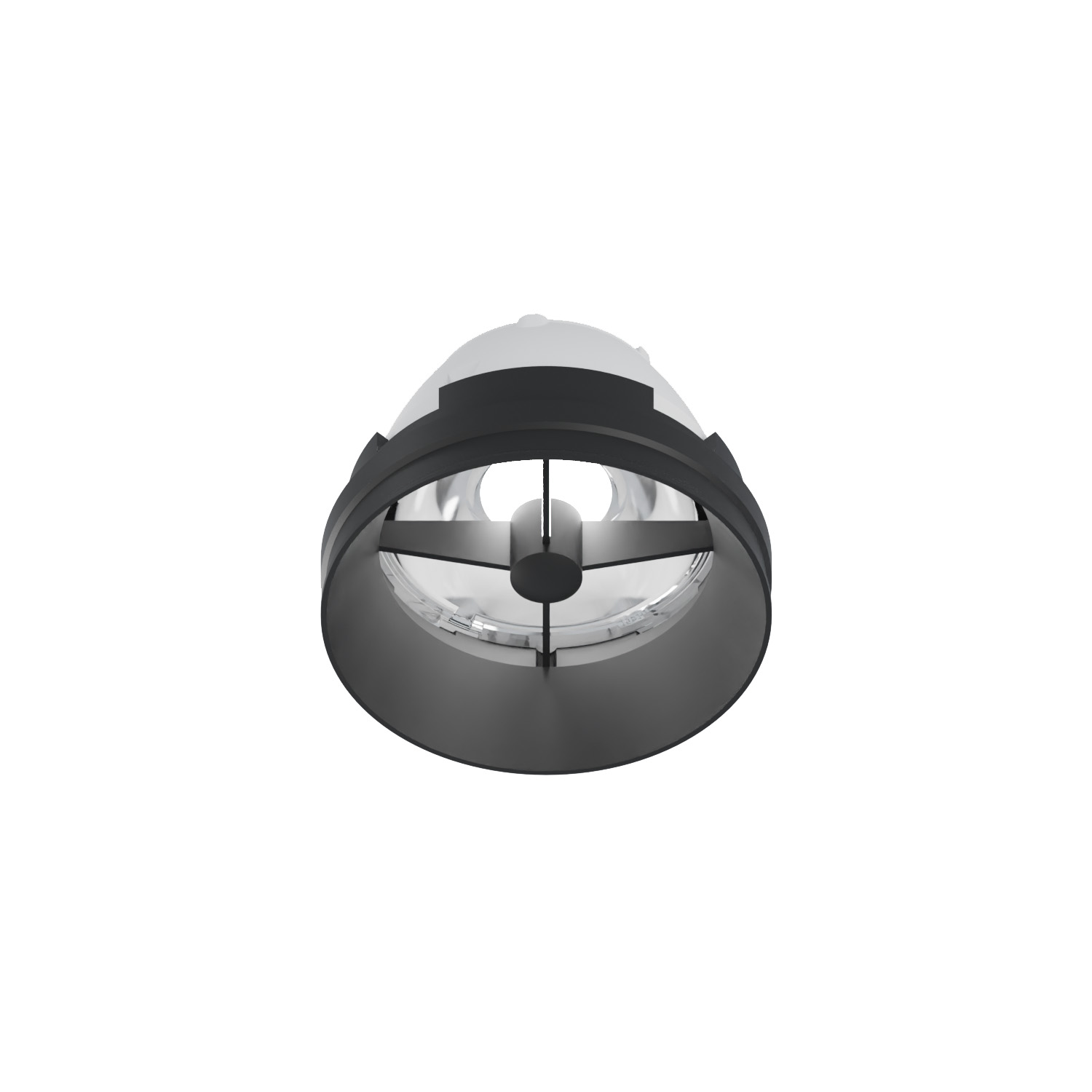

EUGR<19
Download
Photometric Files

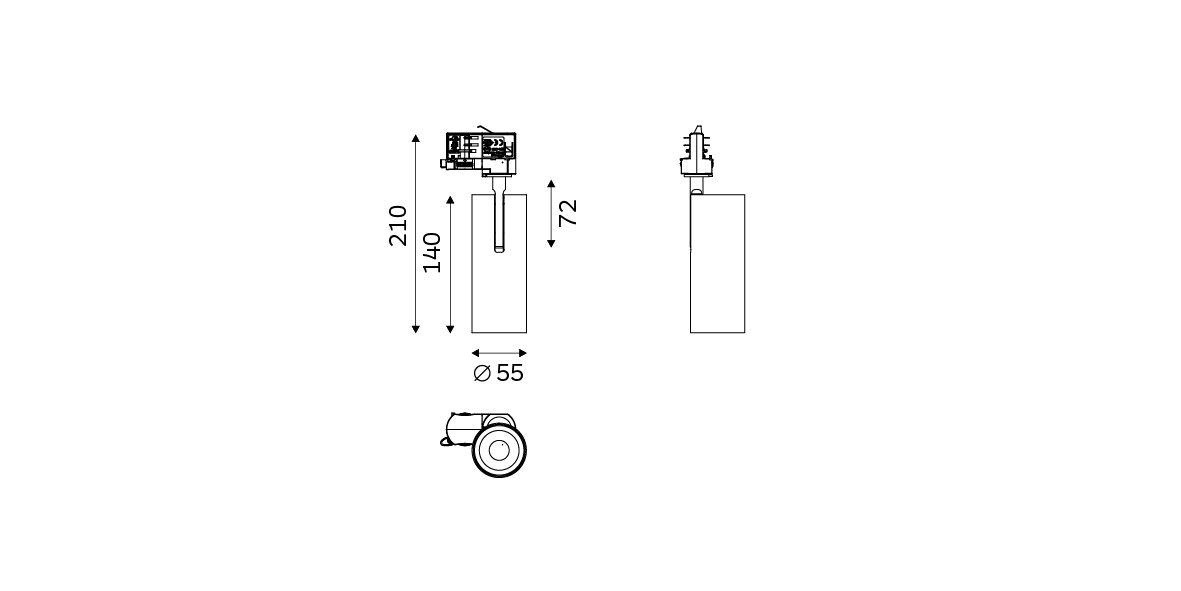

Technical Drawings
