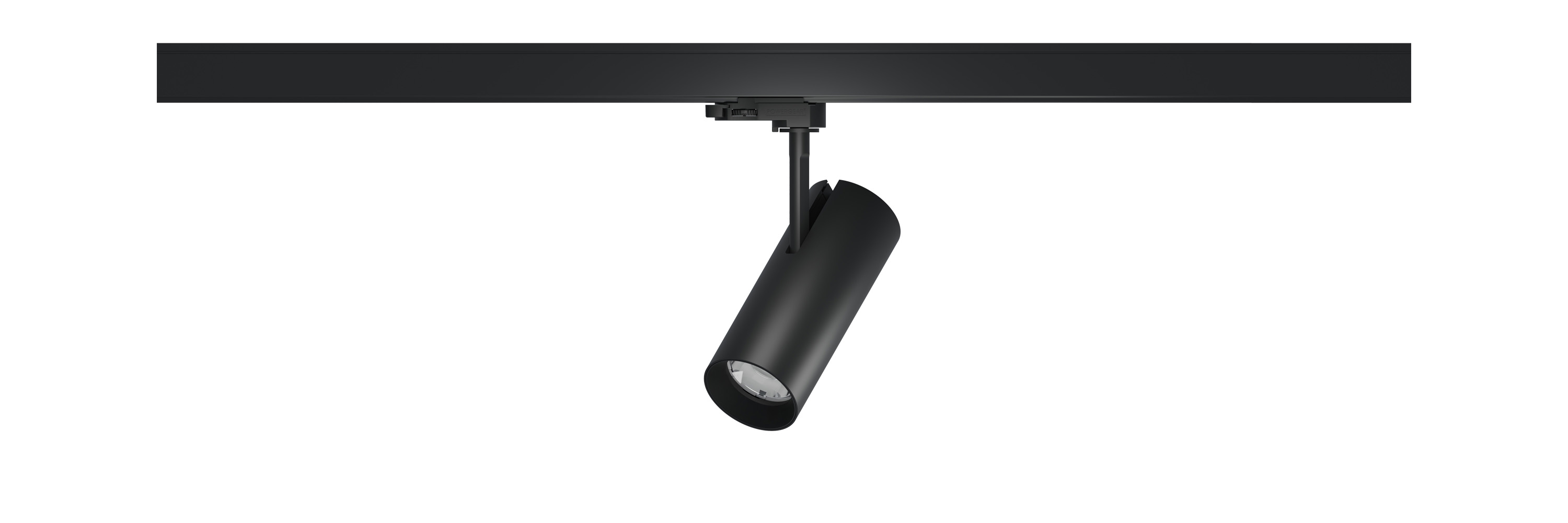

32.06519 SPECTRUM Track Lighting
| Connected Load | 19.7W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 19D/24D/39D/51D |
| Track Phases | 1 Circuit/ 3 Circuit |

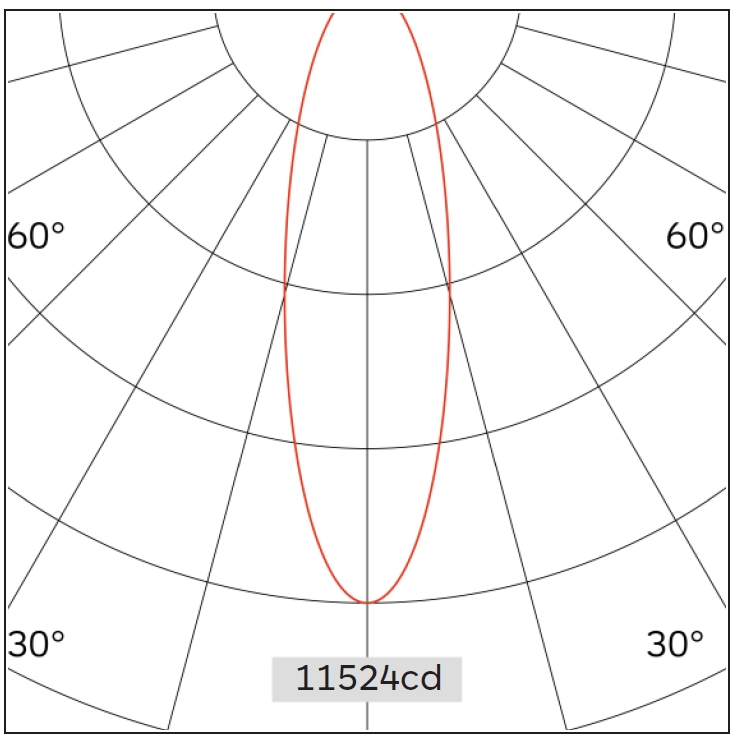

| Light Distribution | 32.06519 SPECTRUM Track Lighting |
| Luminous Flux Of The Luminaire | 2388lm |
| Luminaire Efficacy | 121lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Trica/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.55Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 24° | ||
| 1 | 11524 | 0.43 |
| 2 | 2881 | 0.87 |
| 3 | 1280 | 1.30 |
| 4 | 720 | 1.73 |
| 5 | 460 | 2.17 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
-
ABrandoor
-
BZoom
-
CStandard Beam Angle
-
DNarrow Beam Angle
-
EUGR<19
-

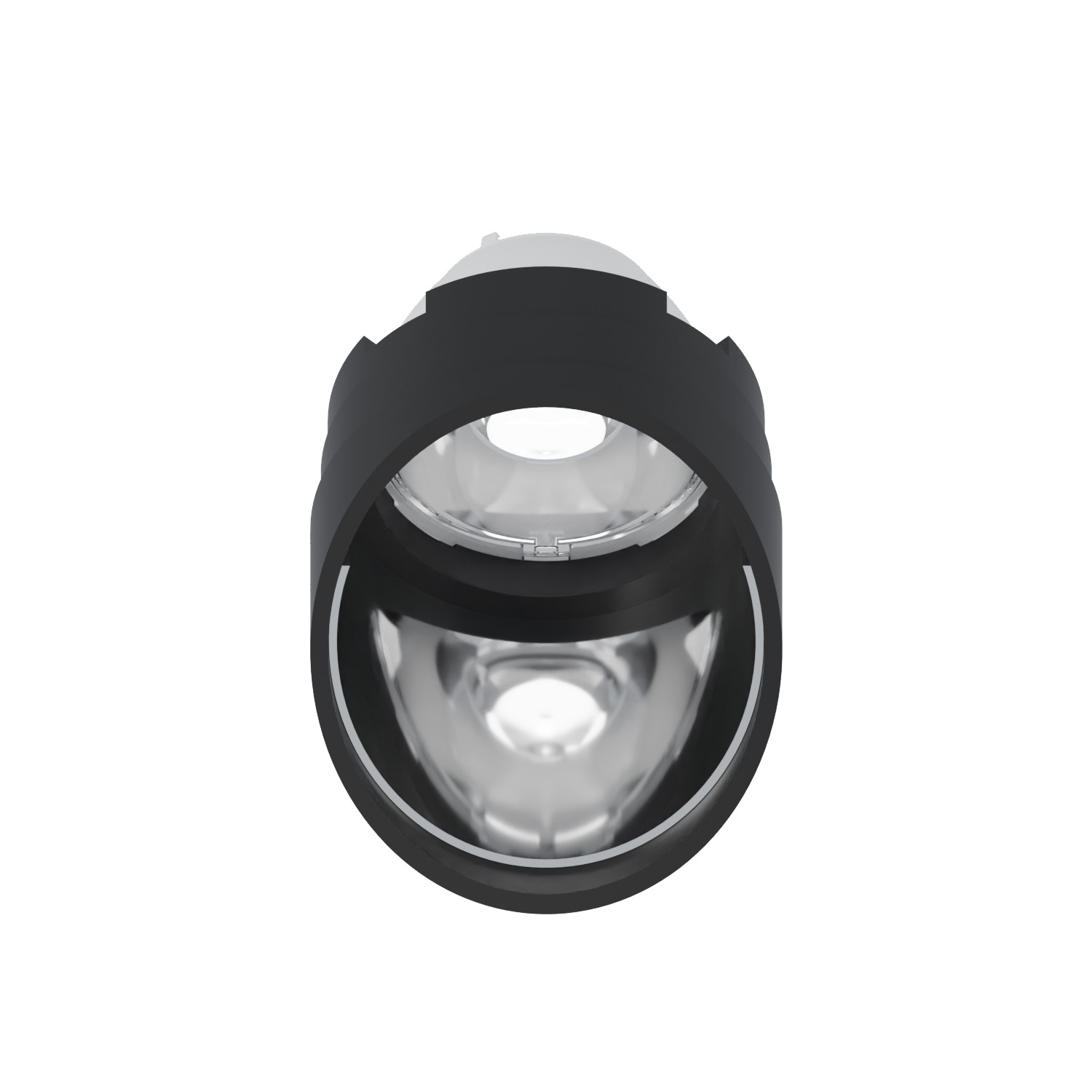

FWall washer
Download
Photometric Files

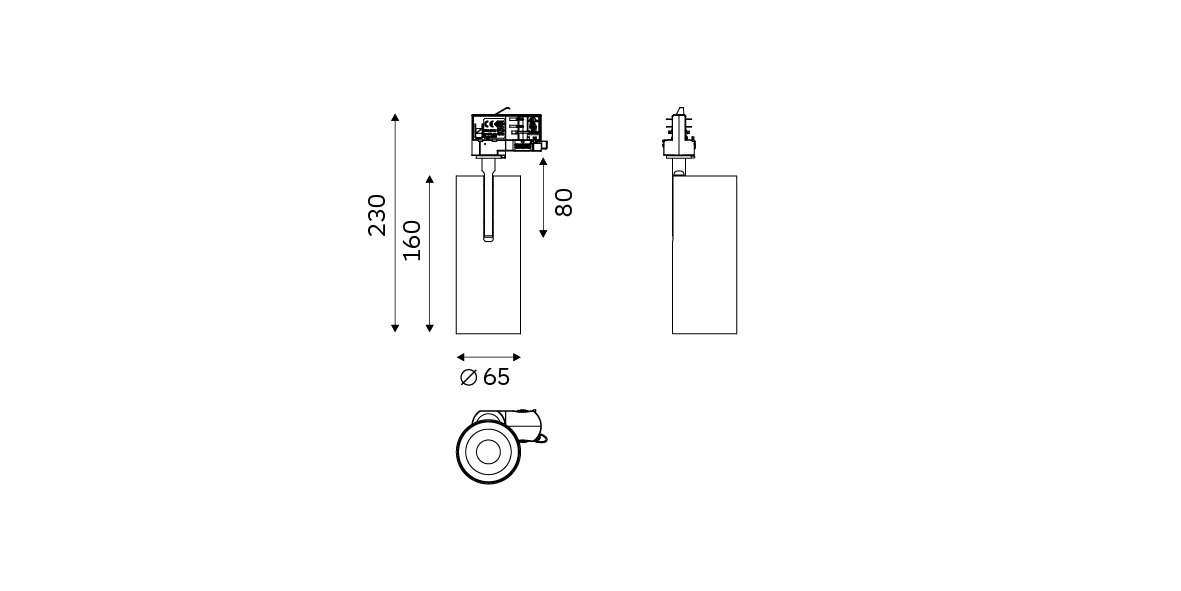

Technical Drawings
